1305
|
|

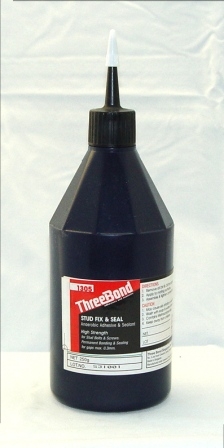

Three Bond 1305 Anaerobic Adhesive & Sealant
|
Three Bond 1305 is a reactive acrylic monomer based anaerobic adhesive and sealant. The setting speed is fast and fixing strength is high enough for permanent fixing.
Features
-
Fast setting
-
High fixing strength
-
Excellent chemical resistance
-
It does not harden as long as it is in contact with air (oxygen has a stabilizing effect on the adhesive).
-
Volume reduction of adhesive will not occur when hardening. Hence, excellent sealing.
Applications
Characteristics
|
Item
|
Characteristics
|
Remarks
|
|
Appearance
|
Green, transparent
|
|
|
Viscosity (at 25°C)
|
600
|
Rotary type viscometer
|
|
Specific Gravity
|
1.11
|
At 25°C
|
|
Shear Strength Mpa {kgf/cm²}
|
35.0 {360}
|
Pin and collar (6Ø*151)
|
|
Break Losse Torque
|
340 kgf·cm
|
Quality JIS 2nd class
|
|
Prevailing Torque
|
210 kgf·cm
|
MX10 Fe Blots/Nuts
|
|
Setting Speed
|
1-2hrs
|
Practical strength
|
|
Setting Speed
|
24 hrs
|
Final strength
|
|
Optimum Clearance (mm)
|
0.01-0.02
|
|
|
Maximum Clearance (mm)
|
0.3
|
|
|
Serviceable Temperature
|
-80°C-+120°C
|
|
|
Flash Point (ºC)
|
124
|
|
|
Ignition Point (ºC)
|
500
|
|
|
|
|
