1207C,D
|
Non-solvent Type ( Silicon Type) 1207C,D
|
-
It is high in viscosity and has superior good thixotropic properties. Thus, is it effective on bonded surfaces with big clearance
-
Superior engine oil and LLC resistance
-
It dries quickly and delivers superior pressure resistance immediately after coating and assembling
-
It does not corrode copper or copper alloy
-
It cures at 120 °C

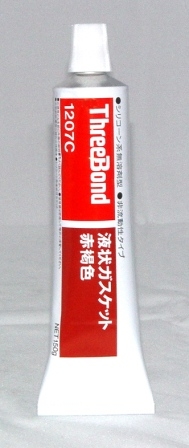

Three Bond 1207C is a silicone rubber based, one component type red colour liquid gasket. It sets automatically at room temperature when reacting with the moisture in the air. No hardeners, activators or heat are required.
Three Bond 1207C increases its strength in the course of hardening. The resultant rubber-like solids resist both heat and cold; maintain stability and original status under a wide range of temperature: from -50ºC to +230ºC.
Features
-
Highly resistant of heat, cold, weather, and has execellent electric insulation.
-
It is solvent-less so little shrinkage occurs.
-
Suitable for sealing comparatively large clearances.
Directions for Use
-
Three Bond 1207C begins hardening in 40 minutes at 25ºC after application.
-
Cut the attached nozzle at a desired positioning order to fir your specific conditions.
-
After use, it is necessary to take off the nozzle and tighten the cap.
-
Three Bond 1207C left in the nozzle can be removed very easily after curing.
-
As the products tend to react with moisture in he air, please be sure to squeeze the air out of the container before tightening the cap.
Characteristics
Before cure
|
|
Units
|
Result
|
Remarks
|
Apperance
|
|
Red
|
|
Specific Gravity
|
|
1.50
|
25ºC
|
Sag
|
|
Non – sag
|
25ºC
|
After cure
|
Apperance
|
|
Red
|
|
Specific Gravity
|
|
40
|
25ºC
|
Hardness
|
|
0.3
|
JIS
|
Pulling Strength
|
kg/cm²
|
1.50
|
|
Elongation
|
%
|
170
|
|
Linear Shrinkage
|
%
|
20
|
|
Shear Strength
|
kg/cm²
|
60
|
A1 plates used
|
|
|
|
