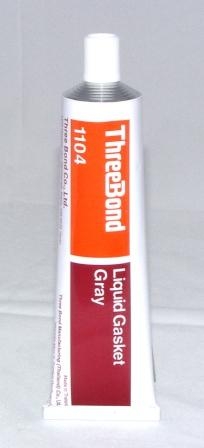

Three Bond 1104 is a liquid gasket developed for easy application. It can cover rough surfaces, fills all gaps and holes; while not causing deterioration to the metal surfaces. This allows improved performance, prevents leakages and enhances seal, thereby extends the life of your products.
Features
High viscosity allows proper coverage by single application, suitable or large clearances.
Form a rubber-like elastic material, highly resistant to heat, oil and a variety of chemicals, especially LPG.
Highly resistant to high pressure at high temperature.
Also effective in preventing leakage from threaded fasteners.
Properties and Composition
|
Main components
|
Highly heat resistant synthetic rubber and synthetic resin
|
|
Diluent
|
Aromatic hydrocarbons and chlorinated hydrocarbons
|
|
Apperance
|
Silver grey viscous liquid
|
|
Viscosity (25ºC)
|
9.5 Pa-s
|
|
Specific Gravity (25ºC)
|
1.36
|
|
Non Volatile Content
|
56.00%
|
|
State after Application
|
Semi-drying
|
Applications
1.Oil pan joined flange surfaces
2.Oil filter fitting surfaces
3.Transmission joined flange surfaces
4.Water inlet and outlet joined flange surfaces
5.Fuel pump joined flange surfaces
6.Oil pump joined flange surfaces
7.Cylinder head joined flange surfaces and any other joined flange surfaces.
